Robotic Welding Cells

ED-ARC Series

Purpose-built to be the best fit for educational institutions, the OTC DAIHEN ED-ARC 100 is a single station robotic welder with all the capability of a full-size production welding system, distilled down to something with the mobility and flexibility to fit easily into the classroom setting. Incorporating an FD-H5 table-top robot and a fully capable Welbee welder, this system can also be used for production.

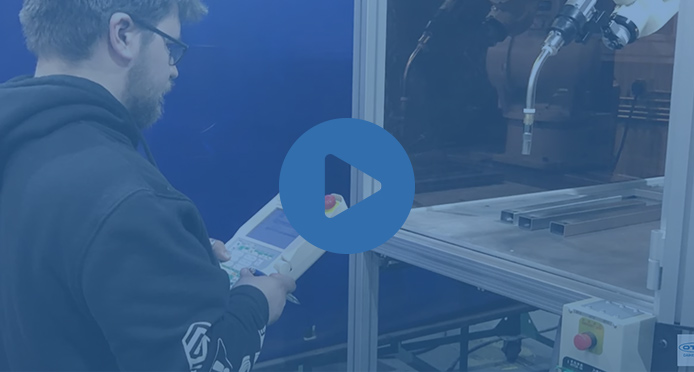

OTC DAIHEN ED-ARC 100 robotic welding cell
OTC DAIHEN ED-ARC 100 robotic welding cell

ED-ARC 100

The OTC ED-ARC 100 is a completely mobile, fully enclosed and safe interlocked arc welding training station. The OTC ED-ARC 100 features a stationary table design to allow robotic weld training on small parts with an FD-H5 robot manipulator. Featuring a lightweight aluminum frame and polycarbonate arc flash enclosure, the OTC ED-ARC 100 allows all the capabilities of the welding environment to be brought to the classroom for instructional teaching.

Request a Quote

  • Ideal for small parts that fit in the 24” x 28.3” workspace and can quickly be converted to robotic welding
  • Mobile, fully enclosed arc welding training station with compact robot manipulator (FD-H5)
  • Lightweight aluminum frame and polycarbonate arc flash enclosure
  • Flat tabletop surface with 610mm x 720mm work area
  • Leveling casters for stable installation/easy movement when needed
  • Front-load access door with tinted window and safety interlock
  • Side access door with tinted window for load/maintenance and safety interlock
  • Tinted panels provide better light in work area for training visibility and operator safety
  • Shelf mounted welding power source
  • Standard Display Monitor
  • Maximum payload: 250kg
  • Height of work area: 1177mm
  • Weight: approx. 550kg
  • Width: 820mm (32.3”)
  • Height: 2014mm (79.3”)
  • Depth: 2320 (91.3”)

ED-ARC 100
